Avalue Technology

OFP-15W33

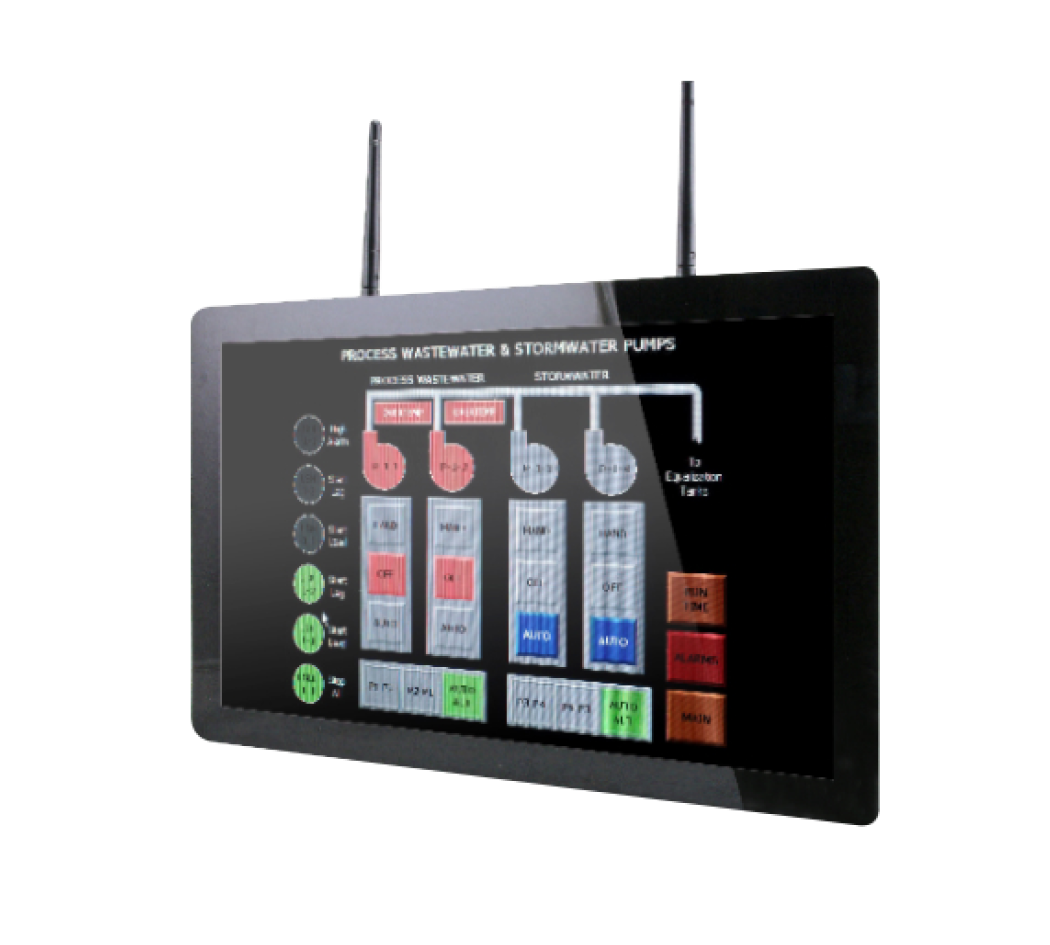

15.6” Full-HD PCAP Multi-Touch Fanless Open Frame Panel PC with Intel® Celeron® J3455 Processor

ProductFeatures
  • 15.6” Full-HD Open frame panel PC with PCAP Touch
  • Onboard Intel® Celeron® J3455 SoC BGA Processor (2M Cache, up to 2.30 GHz)
  • 2 x 204-pin DDR3L 1333 & 1600 MHz SO-DIMM support up to 16GB
  • 2 x GbE LAN, 4 x USB 3.0, Line-out, Mix-in, 1 x COM, DP++, HDMI/DP
  • Option for 4 x COM, 4 x USB 2.0, 16-bit GPIO with DB9 connector
  • Slim & Strength Design
  • Fanless Operation from 0°C ~ 45°C
  • Wide Voltage Input +12V ~ 24V DC
  • Option for Wi-Fi & BT function
  • Option for Infineon SLB9665 TPM 2.0

Introduction

The EPD-42T all-in-one solution can be utilized as a communications board, replacing a traditional white board. It takes advantage of projected capacitive touch (PCAP) technology to produce a vibrant, interactive display. PCAP consists of an insulator such as glass, which is coated with a transparent conductor. That distortion is measurable as a change in capacitance, resulting in crisp, easy-to-read displays. Because it doesn’t emit any light, the display is suited for hospital environments, as it doesn’t disturb patients with bright lights. And information displayed on the digital paper solution is “always on,” even if the power is removed.The EPD-42T all-in-one solution can be utilized as a communications board, replacing a traditional white board. It takes advantage of projected capacitive touch (PCAP) technology to produce a vibrant, interactive display. PCAP consists of an insulator such as glass, which is coated with a transparent conductor. That distortion is measurable as a change in capacitance, resulting in crisp, easy-to-read displays. Because it doesn’t emit any light, the display is suited for hospital environments, as it doesn’t disturb patients with bright lights. And information displayed on the digital paper solution is “always on,” even if the power is removed.The EPD-42T all-in-one solution can be utilized as a communications board, replacing a traditional white board. It takes advantage of projected capacitive touch (PCAP) technology to produce a vibrant, interactive display. PCAP consists of an insulator such as glass, which is coated with a transparent conductor. That distortion is measurable as a change in capacitance, resulting in crisp, easy-to-read displays. Because it doesn’t emit any light, the display is suited for hospital environments, as it doesn’t disturb patients with bright lights. And information displayed on the digital paper solution is “always on,” even if the power is removed.The EPD-42T all-in-one solution can be utilized as a communications board, replacing a traditional white board. It takes advantage of projected capacitive touch (PCAP) technology to produce a vibrant, interactive display. PCAP consists of an insulator such as glass, which is coated with a transparent conductor. That distortion is measurable as a change in capacitance, resulting in crisp, easy-to-read displays. Because it doesn’t emit any light, the display is suited for hospital environments, as it doesn’t disturb patients with bright lights. And information displayed on the digital paper solution is “always on,” even if the power is removed.The EPD-42T all-in-one solution can be utilized as a communications board, replacing a traditional white board. It takes advantage of projected capacitive touch (PCAP) technology to produce a vibrant, interactive display. PCAP consists of an insulator such as glass, which is coated with a transparent conductor. That distortion is measurable as a change in capacitance, resulting in crisp, easy-to-read displays. Because it doesn’t emit any light, the display is suited for hospital environments, as it doesn’t disturb patients with bright lights. And information displayed on the digital paper solution is “always on,” even if the power is removed.

Specification

System Information

  • Processor

    Onboard Intel® Celeron® J3455 SoC BGA Processor (2M Cache, up to 2.30 GHz)

  • Processor

    Onboard Intel® Celeron® J3455 SoC BGA Processor (2M Cache, up to 2.30 GHz)

  • System Memory

    Default with 4GB DDR3L Memory
    Option supports up to 16GB DDR3L 1600 & 1333MHz SO-DIMM

  • I/O Chipset

    EC iTE IT8528

  • BIOS Information

    AMI 128Mbit SPI BIOS

  • Watch Timer

    H/W Reset: 1 sec. ~ 65535 sec./min. and 1 sec. or 1 min./step

  • H/W Status Monitor

    Monitoring System Temperature and Voltage with Auto Throttling Control

  • CPU Cooler (Type)

    Fanless Heatsink

  • Board

    EMX-APLP

Expansion

  • Expansion

    1 x M.2 (2230) A-Key support Wi-Fi module

  • Expansion

    1 x M.2 (2230) A-Key support Wi-Fi module

Storage

  • Storage

    Default with 64GB mSATA

  • Storage

    Default with 64GB mSATA

  • Other Storage Device

    Reserve space for 1 x 2.5” Drive Bay design (by option)

Panel

  • LCD

    15.6”, 16:9

  • LCD

    15.6”, 16:9

  • Display Type

    Full HD

  • B/L Inverter/Converter

    LCD built

  • Resolution

    1920 x 1080

  • Pixel pitch

    179.25um(H) x 179.25um(V)

  • Luminance

    220 cd/m2

  • Contract ratio

    800

  • Viewing angle

    85 (U), 85 (D), 85 (L), 85 (R)

  • Response time

    30 ms

  • Backlight

    LED

  • Touch Type

    Projective Capacitive Multi-Touch supports up to 10 points

  • Touch Light Transmissio

    89%

  • Touch Controller

    EETI

Packing List

Part Number
Description
Quantity
EAS-Q170P

Intel 6th Generation Core Processor ATX Motherboard With Intel Q170 Chipset

2

EAX-Q170KP

Intel 6th Generation Core Processor ATX Motherboard With Intel Q170 Chipset

10

EAS-Q180X

Intel 6th Generation Core Processor ATX Motherboard With Intel Q170 Chipset

15

CPU Support List

# of Cores
# of Threads
Processor Base Frequency
Mas Tubo Frequency
TDP
title 6
title 7
title 8
title 9
title 10
Core i9
i9-10980XE(L1)
Skylake-X
3 GHz
24.75MB
165W
rev. 2.0
1.0
5.0
0.75
Core i7
i7-9980X(U0)
Kaby Lake-X
4.0 GHz
6MB
112W
rev. 1.2.1
1.0
5.0
0.75

Block Diagram

System Dimensions

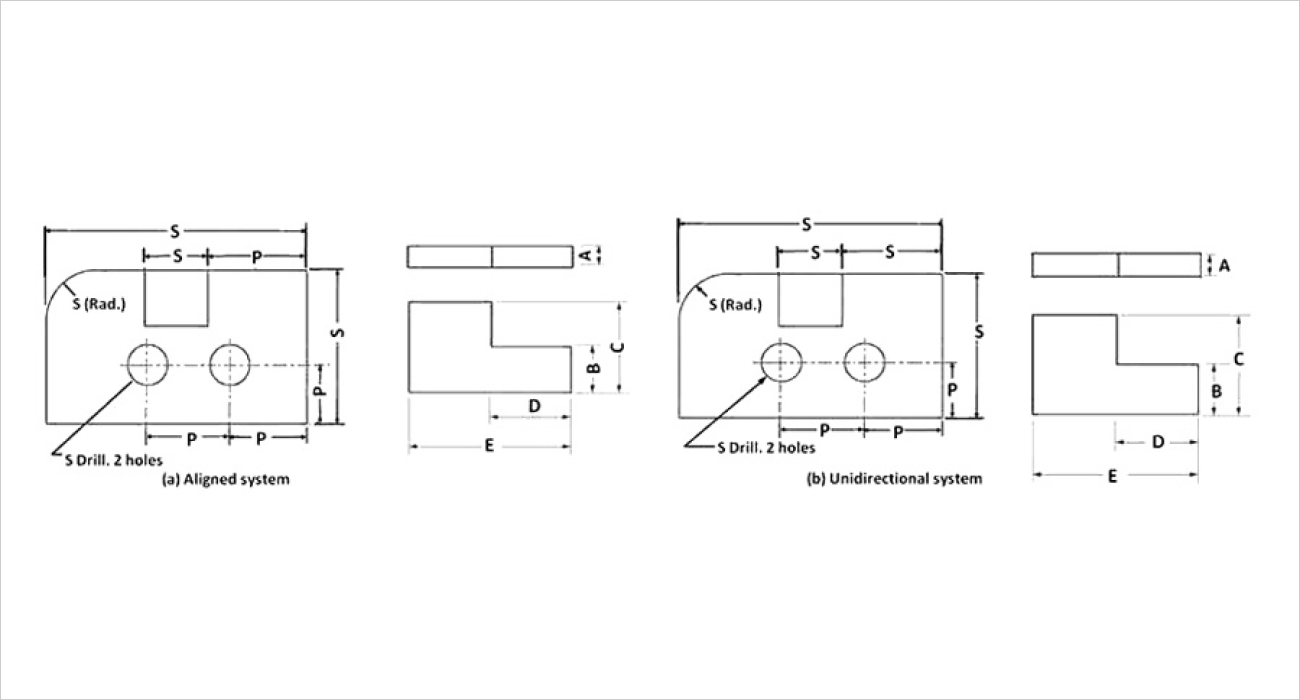

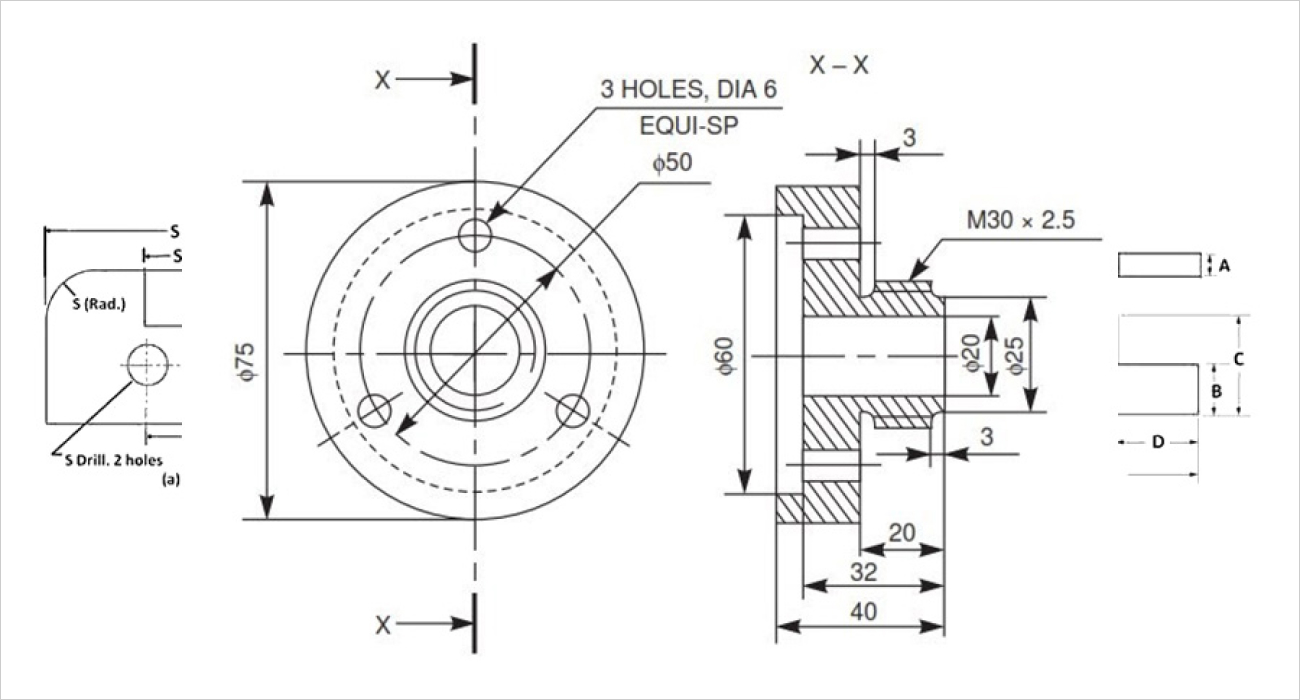

Mechanical Drawing

I/O
